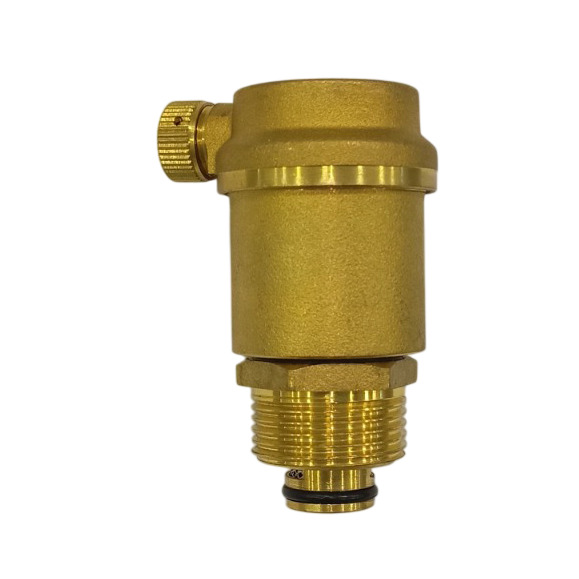

Brass Air Vent Valve CN7512

Price 281.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

Brass Air Vent Valve CN7512 Specification

Pressure Type
High Pressure

Dimension (L*W*H)
55 mm x 28 mm x 28 mm

Port Size
1/2 BSP Thread

Media
Air / Water

Floating Ball
Brass with corrosion-resistant coating

Working Temperature
Up to 110C

Application
Automatic air release from hydraulic systems, Radiators, Boilers, HVAC systems

Body Material
Forged Brass

Release lever
Not Provided (Automatic Operation)

Material
Brass

Power
Manual (No Power required)

Pressure
10 Bar (Max)

Structure
Automatic Air Vent Valve, Vertical Design

Size
1/2 inch

Weight
Approx. 120 g

Seal Material
EPDM Rubber

Surface Finish
Nickel Plated

Suitable Fluids
Heating System Water, Air

Installation Position
Vertical Only

Maintenance
Maintenance Free

Leak Proof
Yes

Thread Standard
ISO 228

Operation
Automatic continuous venting

Brass Air Vent Valve CN7512 Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Week

Delivery Time
2-10 Days

Main Domestic Market
All India

About Brass Air Vent Valve CN7512

Take advantage of this laureate CN7512 Brass Air Vent Valve-an offer you simply can't miss! Designed for vertical installation and constructed from venerable forged brass, this valve stands as a towering figure in automatic continuous venting. Featuring a leak-proof structure, nickel-plated finish, and EPDM rubber seal, it guarantees superior reliability. Engineered for HVAC, radiators, and boiler applications, its maintenance-free performance and ISO 228 thread standard assure swift, hassle-free integration. Reserve now; this esteemed product is ending soon!

Application Method and Direction of Use

To effectively utilize the CN7512 Brass Air Vent Valve, install it solely in a vertical position on site-specific HVAC systems, radiators, or boilers. Its automatic operation requires no manual power or release lever, allowing effortless air release. Direction of use involves simply threading its 1/2 BSP port into the designed system point and ensuring a secure, upright connection. Perfect for continuous venting, it facilitates seamless removal of trapped air, maintaining optimal heating performance.

Domestic Market, Payment, and Sample Availability

Our CN7512 Air Vent Valve is available for swift order completion across the main domestic market of India. Payment terms are designed for your convenience, ensuring secure transactions and efficient processing. Once shipped, goods are transported via reliable logistics networks for timely delivery. For your assurance and confidence in choosing the right product, a sample unit is available upon request, making your procurement process streamlined and worry-free.

FAQ's of CN7512 Brass Air Vent Valve:

Q: How is the CN7512 Brass Air Vent Valve installed for optimal performance?

A: Install the vent valve in a strictly vertical orientation at the highest point of your heating or HVAC system for effective air release. Secure the 1/2 BSP thread to the designated system port, ensuring a tight, leak-proof fit.

Q: What benefits does the automatic venting feature provide?

A: Automatic venting continuously and efficiently releases trapped air without manual intervention, preventing system blockages, improving heating efficiency, and minimizing maintenance needs.

Q: Where can the CN7512 Brass Air Vent Valve be used?

A: This valve is ideal for application in hydraulic systems, radiators, boilers, and HVAC units, ensuring optimal air release and preventing pressure build-up in domestic and commercial installations.

Q: What process does the valve follow for air release?

A: The built-in floating brass ball detects and discharges trapped air automatically. There's no need for manual operation-simply install it and let the valve work continuously.

Q: When should the valve be replaced or serviced?

A: The CN7512 is engineered as maintenance-free under normal operating conditions. Replacement is rarely necessary unless physical damage or system changes require it.
